Combo: Bottle Filler + Drinking Fountains

M8CREBQY 507177E

Model Colors
Stainless Steel

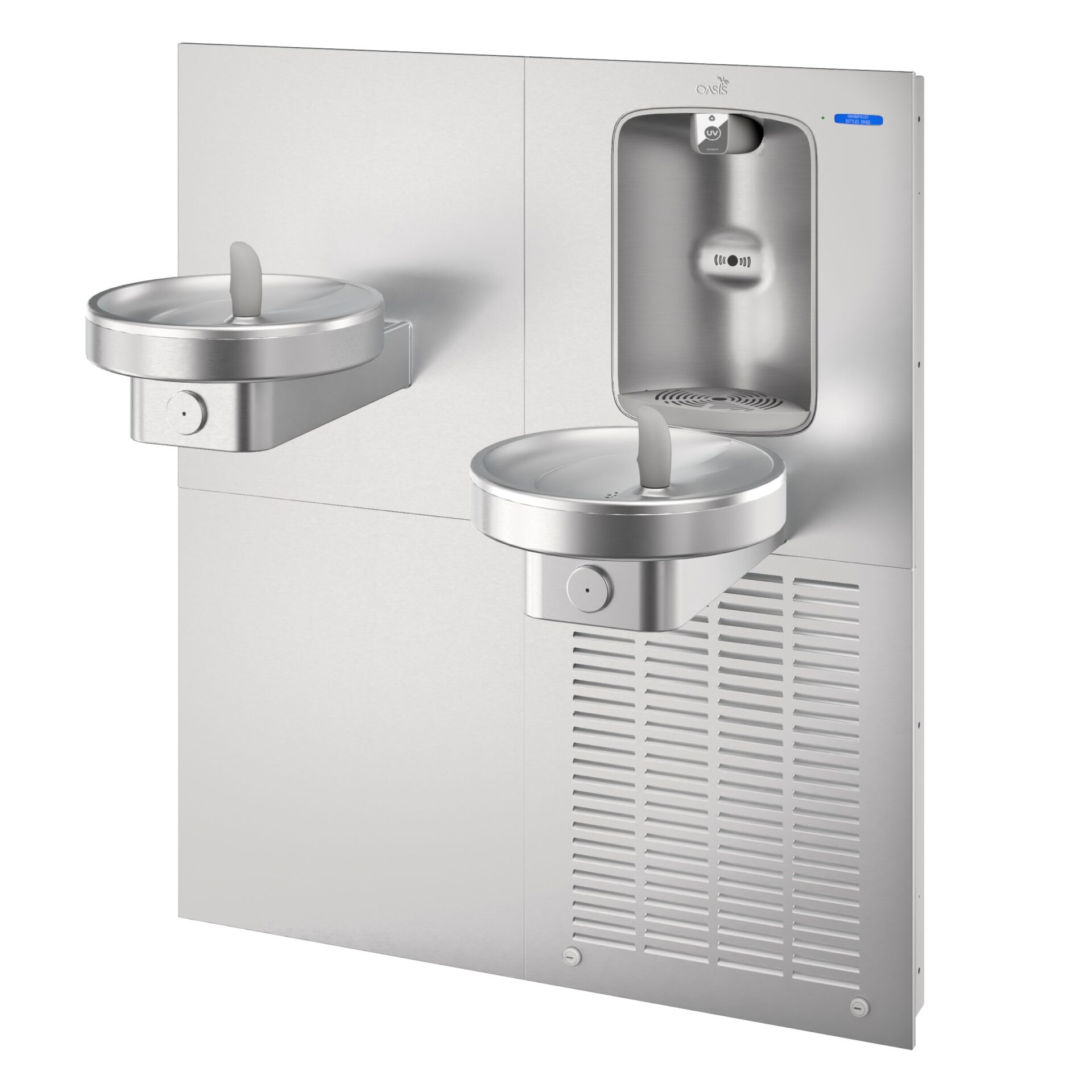

The M8CREBQY surface mount hydration station combo has two activation methods. The bottle filler includes an electronic sensor for contactless (touch-free) activation and a 30-second shut-off timer. The radii drinking fountains are activated via the push-buttons. Delivering 60 litres of chilled water per hour.

Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.

Freshield utilises a silver-based antimicrobial compound that reduces the growth of micro-organisms and mildew to protect the surfaces from discolouration, odours and degradation. Freshield is a key compenent in OASIS Bottle Fillers.

Quasar bottle fillers have UVC-LED treatment right at the point of dispense! This mercury-free UVC-LED disinfects the water while it is being dispensed, killing 99.99% of bacteria. The UVC-LED cycles on periodically to keep the dispense-point sanitized between dispenses.

Tech Spec

M8CREBQY
Activation Bottle Filler: Contactless (Infrared sensor) Drinking Fountain: Manual (Push-button)
Alcove Height 330 mm mm
Dimensions 1035(H) x 1003(W) x 483(D) 9287 recessed) mm
Feature Refrigerated
Finish Brushed Stainless Steel
Max Power Consumption 2.2A
Performance Built-in 100 micron strainer
Power Supply 220-240V, 50/60 Hz
Water Temp 10°C in 21°C amb. temp.
Water Type Cold
Micron Rating Built-in 100 micron strainer
Disinfections Quasar UVC-LED

Standard Features:

  • Sleek, contemporary design
  • Enhanced alcove to fit larger sports bottle
  • Contactless activation with shut off timer (Bottle Filler)
  • The integrated bottle counter conveniently tracks and displays the number of refills
  • Built in drain – no drip tray to empty
  • Built-in 100 micron strainer stops particles before they enter the waterway
  • Waterways are lead-free in materials & construction
  • Heavy duty steel frame
  • Refrigerated
  • Built in Panel Locks for easy access to chiller and filtration
  • Cooling system uses R-134a or R-290a refrigerant

Product Assurance
And Certifications.

Together with ISO 9001:2015 and ISO 14001:2015, our lean manufacturing and system approach and a well-trained staff is a continuation of our heritage in the industry.
